Description:

TRI-R KIS

CAA Registration - G-CLGE

LAA registered and permit to fly issued

A UK registered aircraft with paperwork, based at :
Hinton in The Hedges Airfield,

This is a 2 - seat aircraft - kit built ery similar in design and construction to a Europa. the wings cannot be removed in the same fashion and are made in one piece

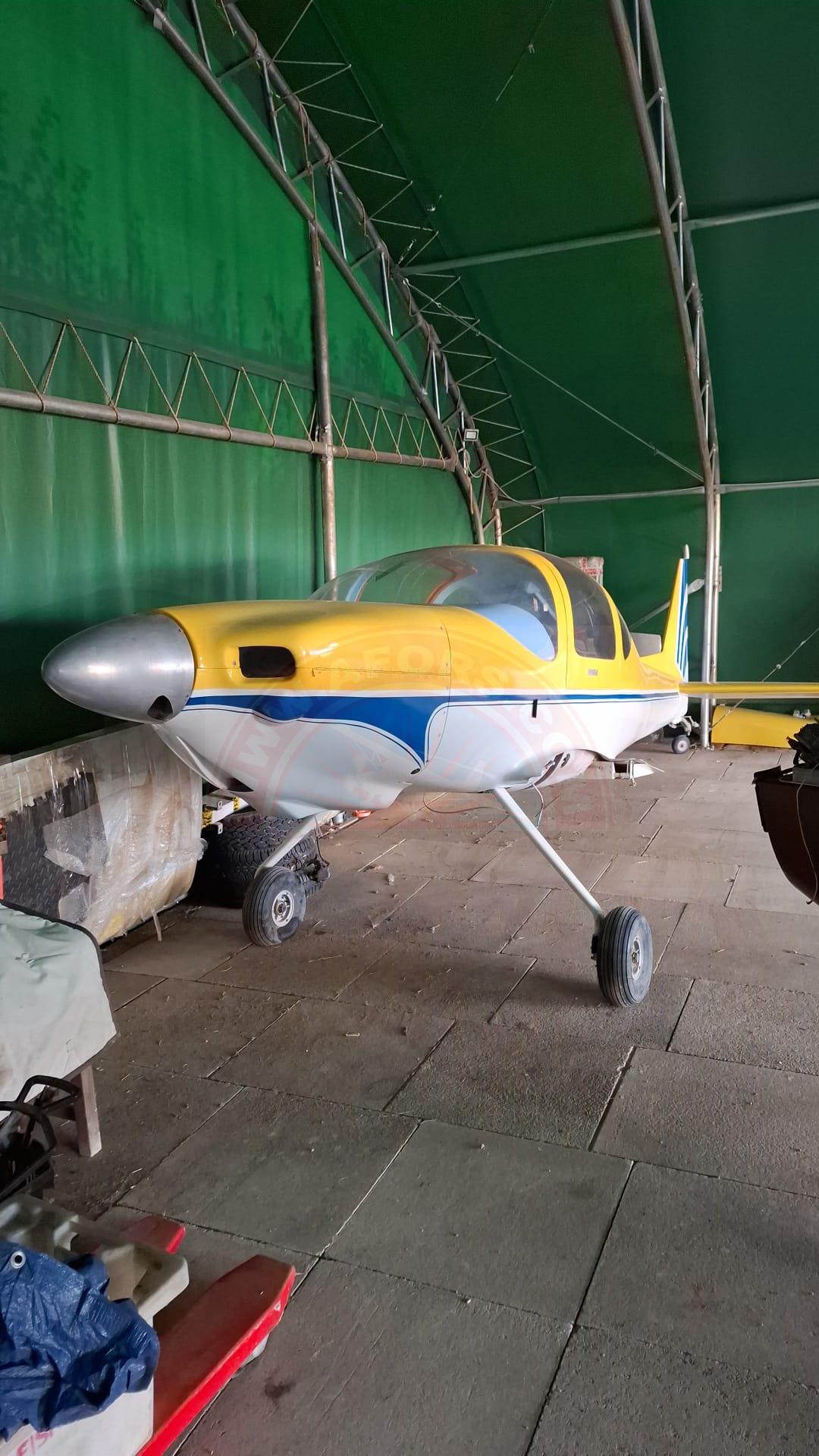

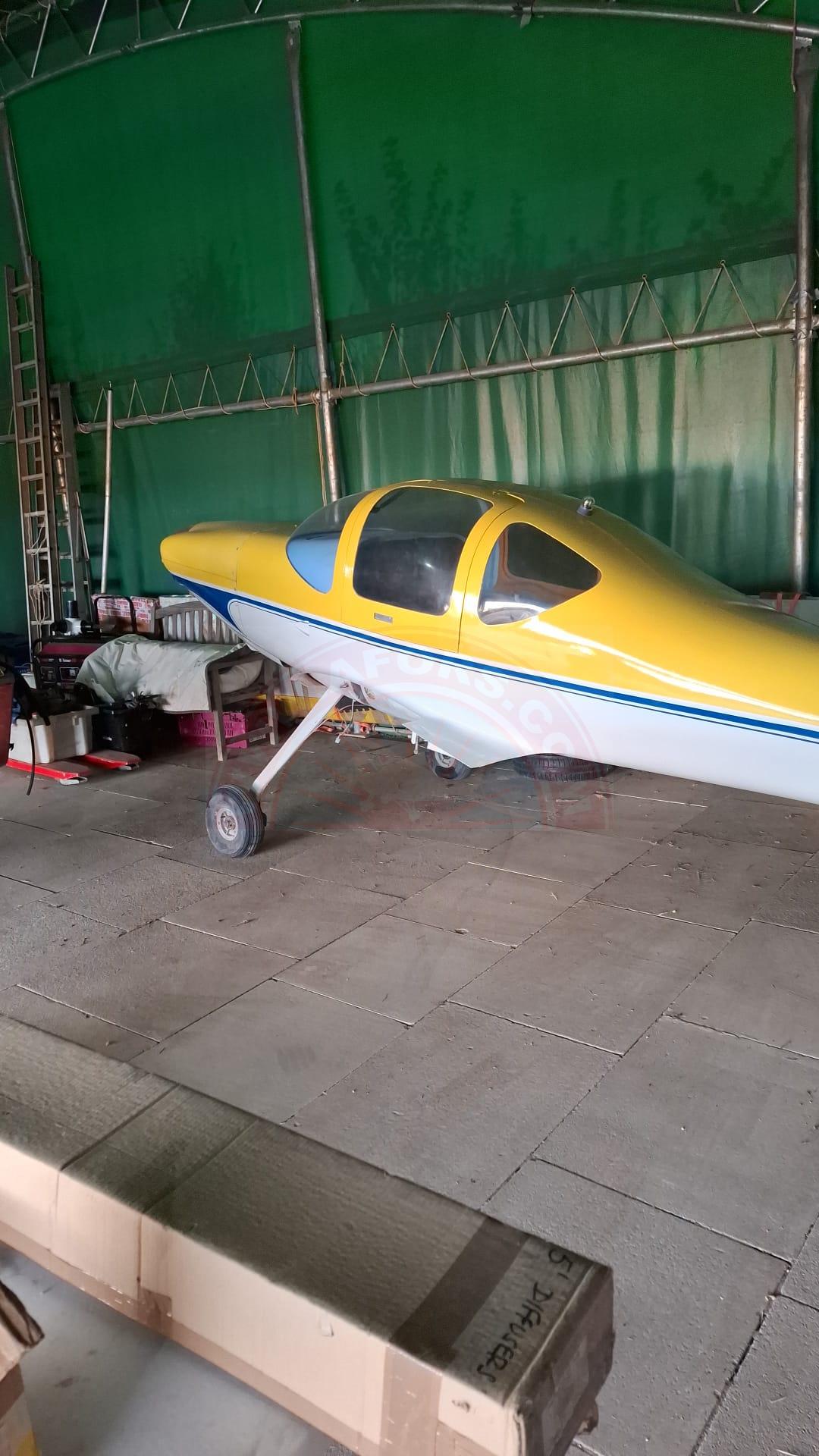

The model is TRI-R KIS. Tail dragger version

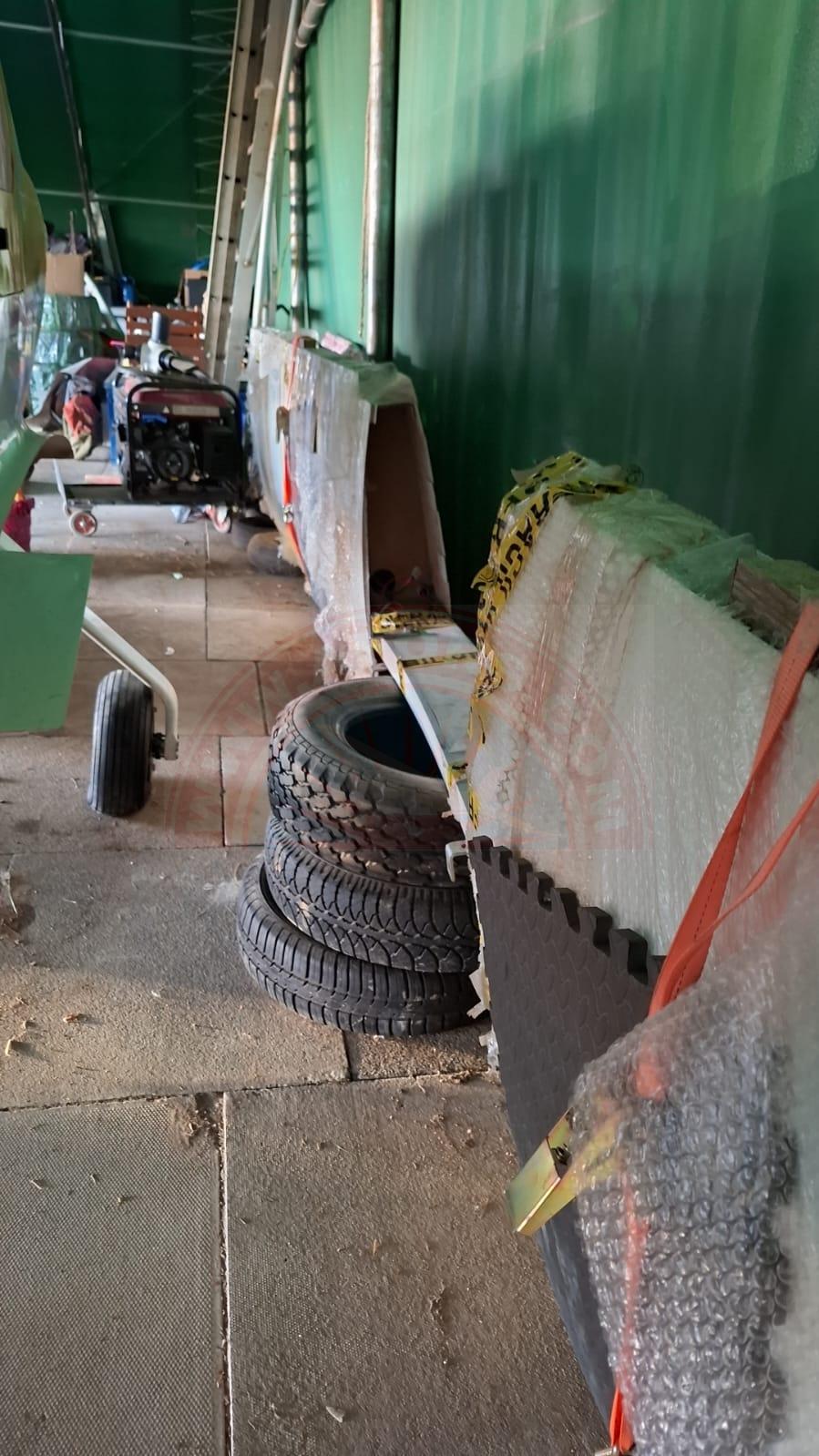

The aircraft is in two pieces ready for shipping
This aircraft had a hard landing some years back bending the U/C leg and damaging some glazing; all has been replaced, no damage to the hull or engine sustained. the wing was damaged and this has been replaced.
All paperwork provided including a CD of photos showing the consturction stages

LAA Cheif Engineer Jon Viner, has reviewed the aircraft history and paperwork and sees no reason why it cannot be re-assembled with guidance from an inspector and put back into airworthy condition

Wing max length: - 25 feet, width 4 feet
Fuselage max length: 21 feet, width 4 feet, height 10 inches
Max height at the tail: 6 feet.
Total weight (approx): 370kg

It is on its wheels, so easy to load. (Tail dragger )
The wings can be easily carried by two people.
All will need to be well secured during transit.
The build manual is available and also the log books for hull and engine
some small parts like fasteners may be needed to re-assemble


General characteristics
• Crew: one
• Capacity: one passenger
• Length: 22 ft 0 in (6.71 m) Including Spinner
• Wingspan: 23 ft 0 in (7.01 m)
• Wing area: 88.00 sq ft (8.175 m2)
• Airfoil: NACA 63-215
• Empty weight: 750 lb (340 kg)
• Gross weight: 1,300 lb (590 kg)
• Fuel capacity: 20 U.S. gallons (76 L; 17 imp gal)

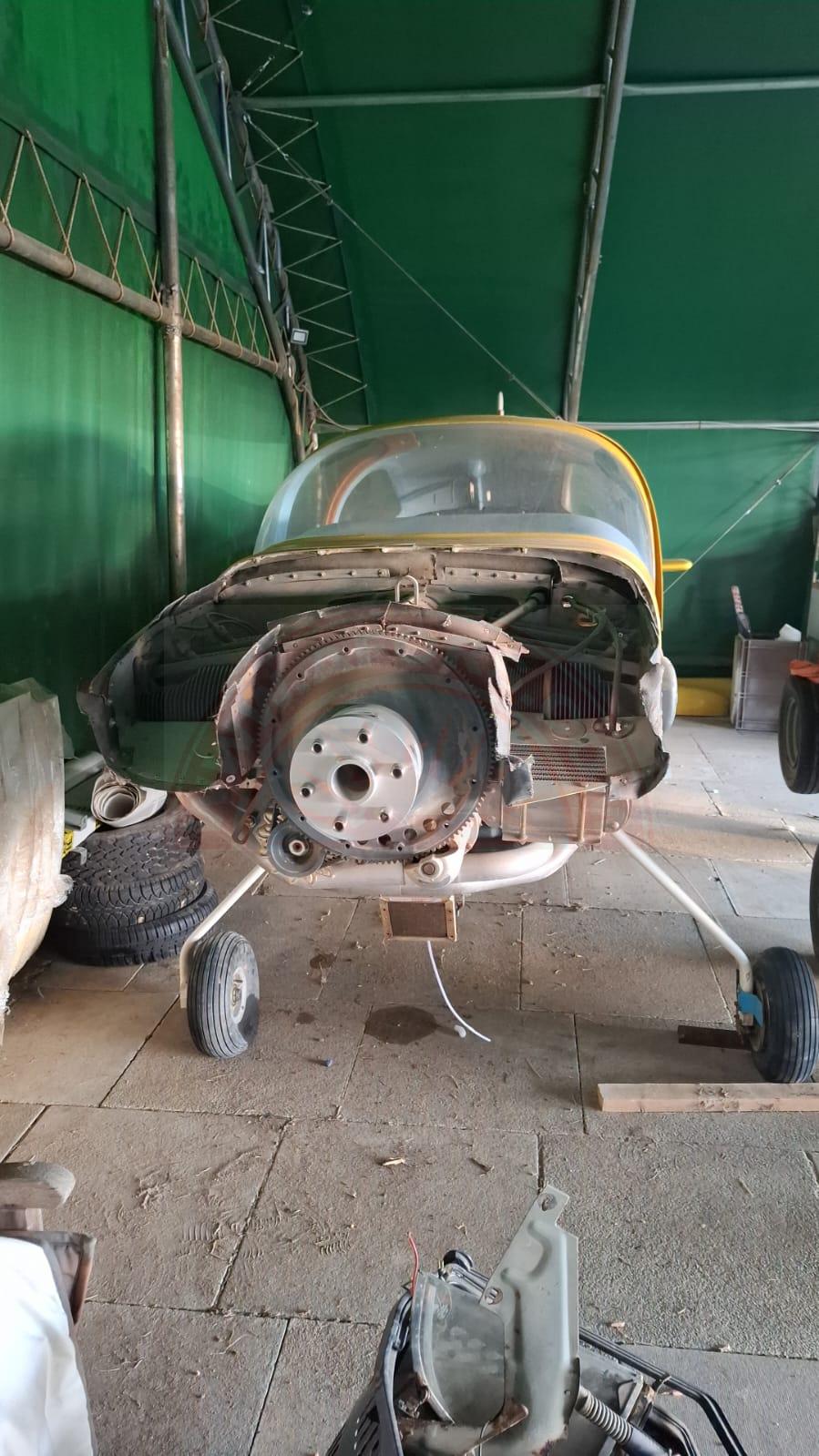

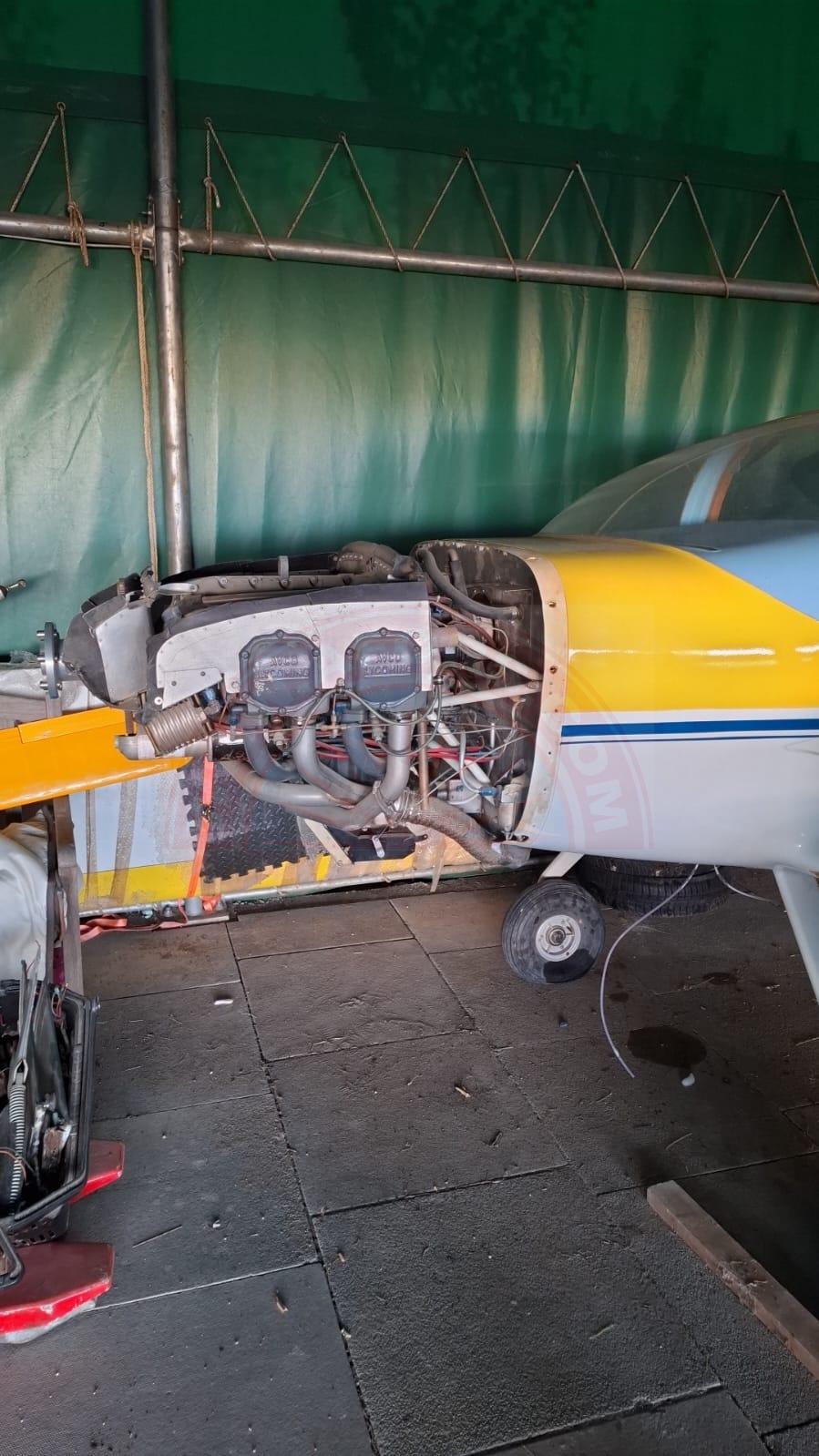

• Powerplant: 1 × Lycoming O-234 four cylinder, air-cooled, four stroke aircraft engine, 115 hp - 1600 since overhaul. has not been run for years so wil need to be checked out before a permit revalidation can be given

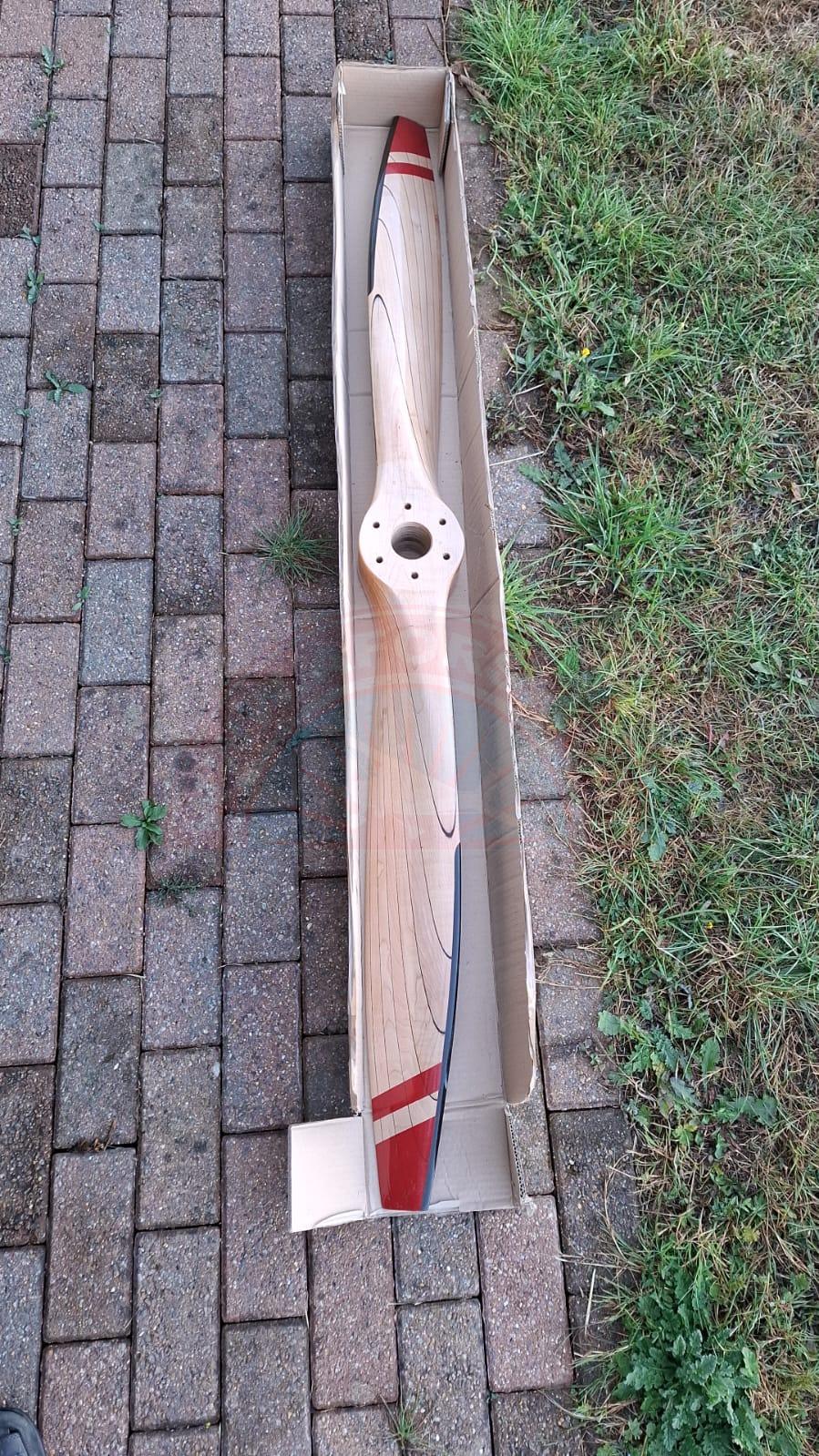

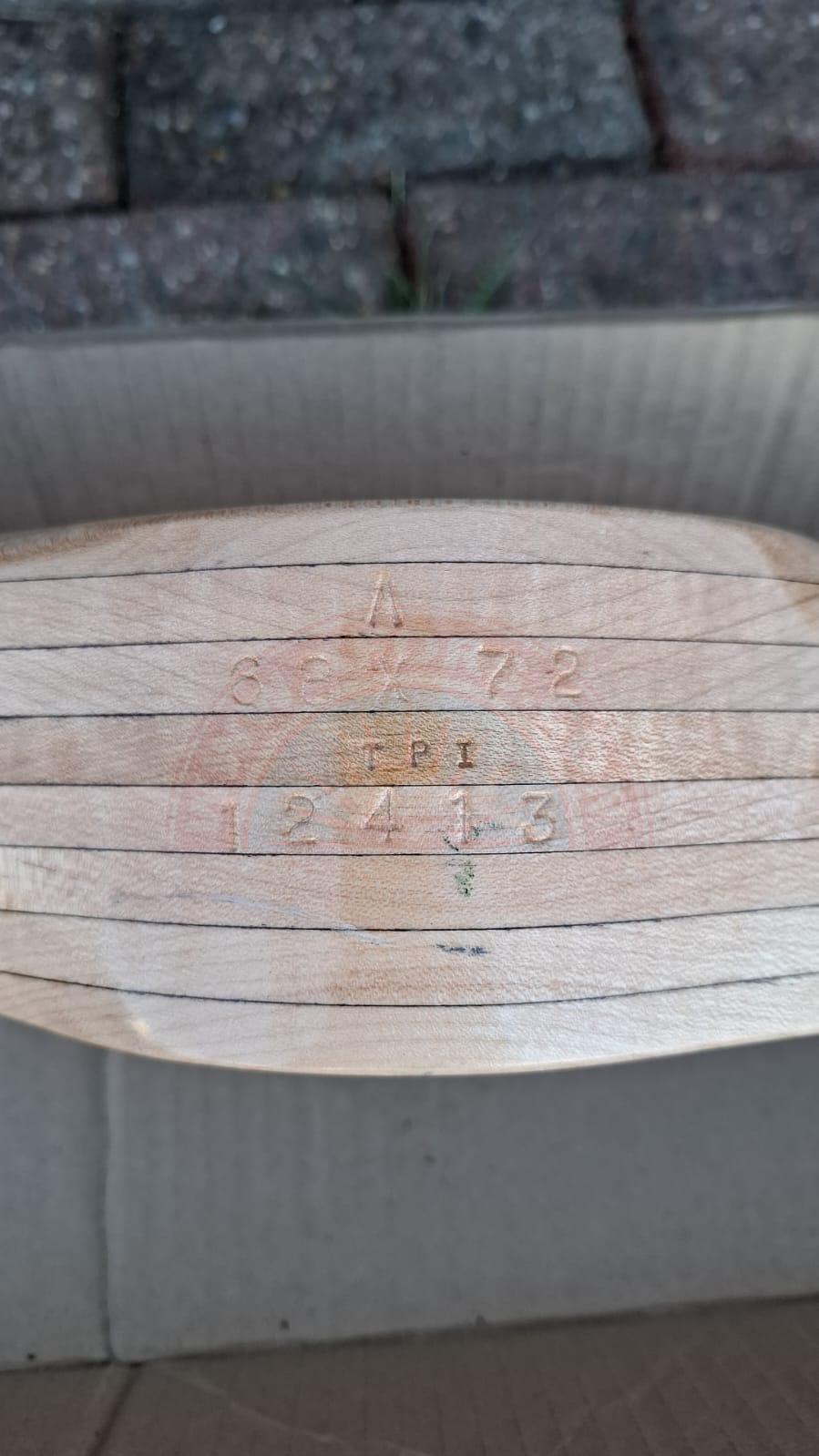

• Propellers: 2-bladed fixed pitch wooden Prop in great condition
Performance
• Maximum speed: 195 mph (314 km/h, 169 kn)
• Cruise speed: 175 mph (282 km/h, 152 kn)
• Stall speed: 55 mph (89 km/h, 48 kn)
• Range: 750 mi (1,210 km, 650 nmi)
• Service ceiling: 17,000 ft (5,200 m)
• Rate of climb: 1,200 ft/min (6.1 m/s)
• Wing loading: 14.8 lb/sq ft (72 kg/m2)
Contact Derek on 07519 79 99 54 -- 0ffers welcomed!

Price: £8000
